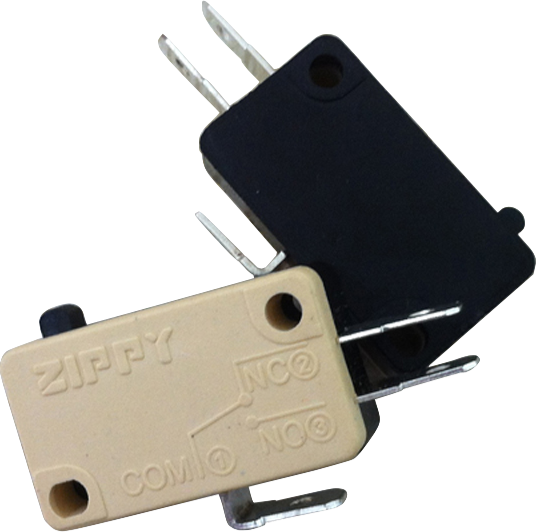

MZIPPY H5 |
Micro Switch Zippy, Arcade. |
Fabricante: _ |
|
|
|
|
|
|
|
Features:
- Security and Reliable
- Movable arm is equipped with a variety of forms
- Using thermosetting plastic or thermoplastic
- Microswitch reliability tested to 10,000,000 cycles
- Quick action,high sensitivity and small operating travel
- Widely used in all kinds of household appliances, electronic equipment, automation equipment, communications equipment, automotive electronics, instruments and meters, electric tools, ect
|
Rated Load
|
5A 125/250VAC T125; 5A 250VAC; 10A 125VAC; 10A 250VAC
|
|
Contact Resistance
|
50m
|
|
Insulation Resistance
|
100M
|
|
Actuating Force
|
3-8N
|
|
Electrical Life
|
10,000 cycles
|
|
Operating Temperature
|
-25C to +85C
|
|
Withstand Voltage
|
1500VAC(50Hz)/1min
|
|
Approvals
|
TUV: 5A 250VAC T125
UL: 10A 125VAC; 5A 250VAC T105
CB:5A 250VAC T125
|
|
 |
|
|
|
|
|
|
