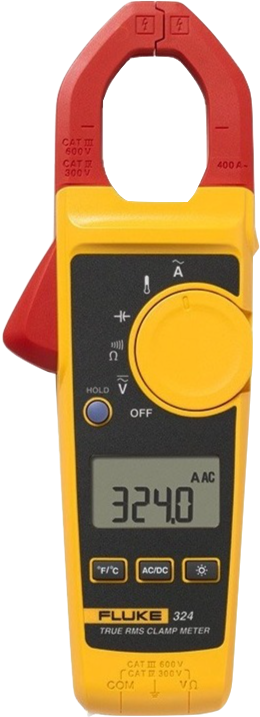

FLUKE324 |
AmperÃmetro Digital de Gancho Fluke-324 400A AC. |
Fabricante: _ |
|
|
|
|
|
|
|
The Fluke 324 True-rm Clamp Meter combines general electrical measurements with temperature and capacitance capabilities to create one solid troubleshooting tool. True-rms measurements and optimised ergonomics make the 320 Series Clamp Meters the best general troubleshooting tools for commercial and residential electricians.
The 323, 324 and 325 are designed to verify the presence of load current, AC voltage and continuity of circuits, switches, fuses and contacts. These small and rugged clamp meters are ideally suited for current measurements up to 400 A in tight cable compartments. The Fluke 324 model also includes temperature and capacitance measurement capabilities.
Measurement capability:
- 400 A ac current measurement
- 600 V ac and dc voltage measurement
- True-rms ac voltage and current for accurate measurements on non-linear signals
- Resistance measurement up to 40 k? with continuity detection
- Temperature and capacitance measurement
Features:
- Slim, ergonomic design
- Large, easy to read backlight display
- CAT IV 300V/CAT III 600 V safety rating
- Hold button
- Two-year warranty
Includes:
- Fluke 324 True-RMS Clamp Meter
- Test Leads
- Soft Case
- User Manual
- Temperature Probe
| Specifications |
| |
323 |
324 |
325 |
| AC current |
Range |
400.0 A |
40.00 A/400.0 A |
40.00 A/400.0 A |
| Accuracy |
2 % ± 5 digits
(45 Hz to 65 Hz)
2.5 % ± 5 digits
(65 Hz to 400 Hz) |
1.5 % ± 5 digits
(45 Hz to 400 Hz)
Note: Add 2 % for
position sensitivity |
2 % ± 5 digits
(45 Hz to 65 Hz)
2.5 % ± 5 digits
(65 Hz to 400 Hz) |
| DC current |
Range |
- |
- |
40.00 A/400.0 A |
| Accuracy |
- |
- |
2 % ± 5 digits |
| AC voltage |
Range |
600.0 V |
600.0 V |
600.0 V |
| Accuracy |
1.5 % ± 5 digits |
1.5 % ± 5 digits |
1.5 % ± 5 digits |
| DC voltage |
Range |
600.0 V |
600.0 V |
600.0 V |
| Accuracy |
1.0 % ± 5 digits |
1.0 % ± 5 digits |
1.0 % ± 5 digits |
| Resistance |
Range |
400.0 Ω/ 4000 Ω |
400.0 Ω/ 4000 Ω |
400.0 Ω/ 4000 Ω/ 40.00 kΩ |
| Accuracy |
1.0 % ± 5 digits |
1.0 % ± 5 digits |
1.0 % ± 5 digits |
| Continuity |
≤ 70 Ω |
≤ 30 Ω |
≤ 30 Ω |
| Capacitance |
- |
100.0 μF to 1000 μF |
100.0 μF to 1000 μF |
| Frequency |
- |
- |
5.0 Hz to 500.0 Hz |
| AC response |
True-rms |
True-rms |
True-rms |
| Backlight |
- |
Yes |
Yes |
| Data hold |
Yes |
Yes |
Yes |
| Contact temperature |
- |
-10.0 °C to 400.0 °C
(14.0 °F to 752.0 °F) |
-10.0 °C to 400.0 °C
(14.0 °F to 752.0 °F) |
| Min/Max |
- |
- |
Yes |
| Size |
H x W x D (mm) |
207 x 75 x 34 |
207 x 75 x 34 |
207 x 75 x 34 |
| Max wire diameter |
30 mm (600 MCM) |
30 mm (600 MCM) |
30 mm (600 MCM) |
| Weight |
265 g |
208 g |
283 g |
| Category rating |
CAT III 600 V
CAT IV 300 V |
CAT III 600 V
CAT IV 300 V |
CAT III 600 V
CAT IV 300 V |
| Warranty |
Two-year |
Two-year |
Two-year |
|
 |
|
|
|
|
|
|
