Model
|
Interface
|
|
CF-RU5102
|
USB
|
|
CF-RU5102K
|
USB emulate keyboard stroke(only read)
|

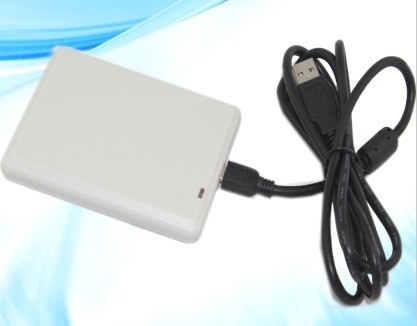

CF-RU5102 is a high performance Multiple Protocol UHF RFID Reader. It is designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system
FEATURES
1. Self-intellectual property;
2. Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
3. 902~928MHz、860~868Mhz frequency band(frequency customization optional);
4. FHSS or Fix Frequency transmission;
5. RF output power up to 10dbm(adjustable);
6. No external power source needed;
7. Built-in antenna with effect distance up to 200mm*;
8. Support USB1.1 interface with VSP(Virtual Serial Port) or HID mode;
9. Slim outline;
10. Provide SDK and demo software to facilitate further development.
* Effective distance depends on protocol, tag and environment.
CHARACTERISTICS
l Absolute Maximum Rating
|
ITEM
|
SYMBOL
|
VALUE
|
UNIT
|
|
Power Supply
|
VCC
|
6
|
V
|
|
Operating Temp.
|
TOPR
|
-10~+60
|
℃
|
|
Storage Temp.
|
TSTR
|
-25~+80
|
℃
|
l Electrical and Mechanical Specification
Under TA＝25℃，VCC＝+5V unless specified
|
ITEM
|
SYMBOL
|
MIN
|
TYP
|
MAX
|
UNIT
|
|
Power Supply
|
VCC
|
4.5
|
5
|
5.5
|
V
|
|
Current Dissipation
|
IC
|
|
120
|
200
|
mA
|
|
Frequency
|
FREQ
|
902
|
|
928
|
MHz
|
|
Effective Distance*
|
Dis
|
0
|
100
|
200
|
mm
|
* Effective distance depends on protocol, tag and environment.
