Product Description:

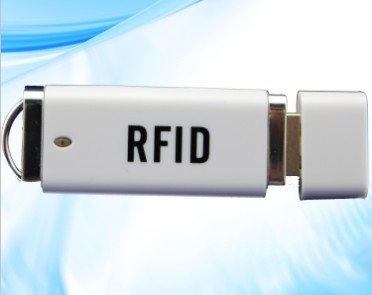

CF-RL170 It's a high performance, lower price 125 KHZ RFID reader, reader distance up to 10cm, widely used for RFID Radio Frequency Identification system and project, such as Automated parking management system, Personal identification, Access controller, Production Access control, etc.
It can work under Windows XP, Win7, Win8, Linux, Android, Mac operate system.
Product model explanation
|
Model
|
output Byte
|
output format
|
interface
|
surface color
|
support
|
|
CF-RL171
|
4
|
8 digit Hex
|
USB
|
white
|
EM card
|
|
CF-RL172
|
4
|
10 digit Dec
|
USB
|
white
|
EM card
|
Capability specifications
|
Name
|
125KHz ID Reader
|
|
Dimension
|
74X19X6mm
|
|
Reader colour
|
white
|
|
Support
|
em4100,TK4100.SMC4001 and compatible card
|
|
\\Frequency
|
125KHz
|
|
Reader time
|
<0.5s
|
|
Baud Rate
|
9600
|
|
Power Supply
|
+5V DC
|
|
Consumed Current
|
70mA
|
|
Operating Distance
|
0~10cm
|
|
Interface
|
USB
|
|
Status Indication
|
1pc LED
|
|
Service Temperature
|
-10℃ ~ +70℃
|
|
Store Temperature
|
-20℃ ~ +80℃
|
Instructions for use:
1. Connet with computer through USB interface directly
2. Open Notepad or a word document
3. The mouse in Notepad or WORD document clicking
4. Put card on the top of reader.
5. Notepad or word documents will output of the ID card number
6. When Reading one card, LED lights turns red into the blue.
